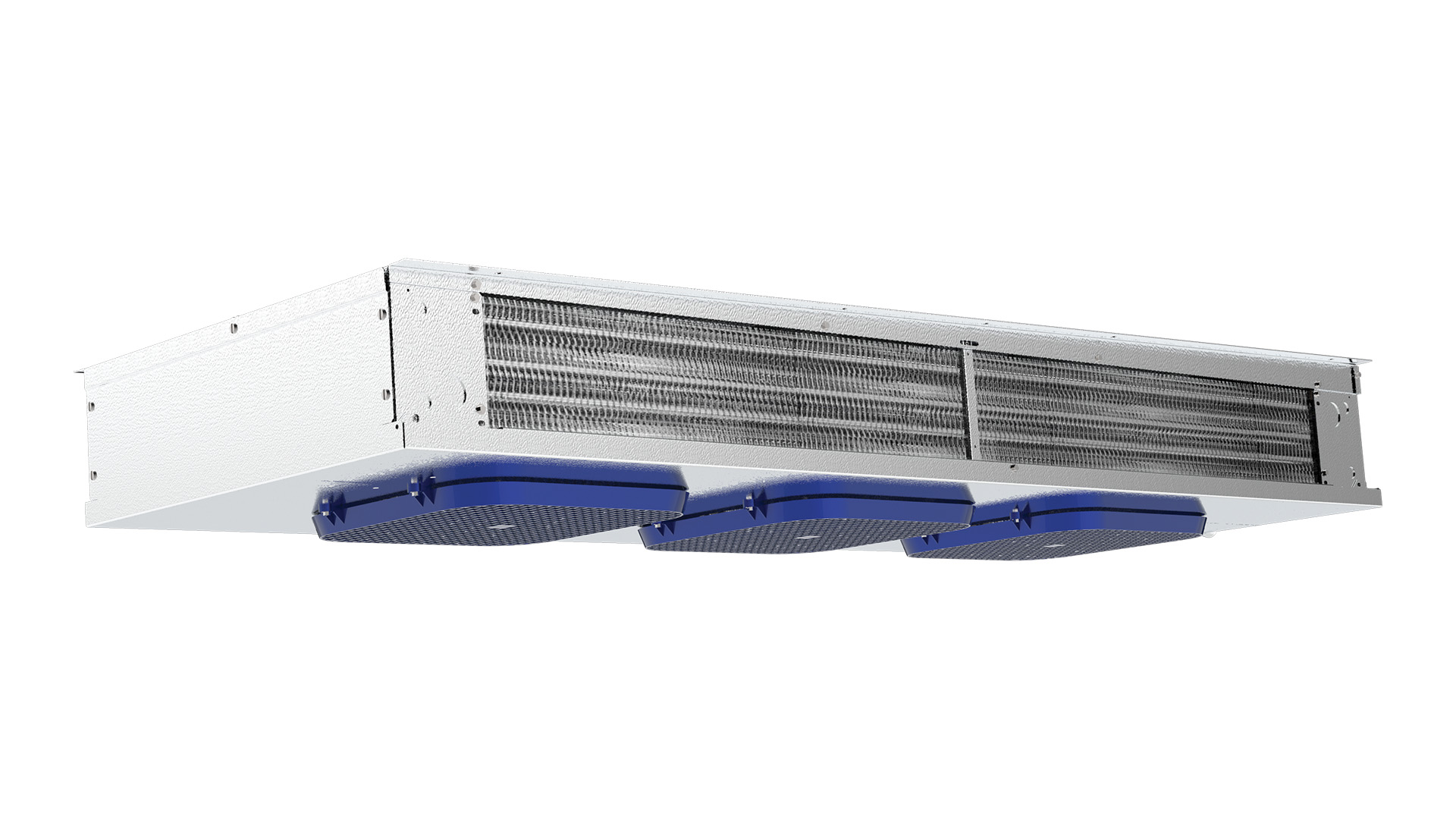

Center Mount

Nomenclature

Features & Benefits

Cabinet

• Even air distribution throughout cooler.
• Compact, center-ceiling mount allows for storage of product around walls.
• Designed for easy access to components.

Coil

• Dehydrated, sealed at the factory and generous surface for proper compressor balance.
• High quality tubular heaters and standard fixed-defrost termination thermostat.
• Enhanced design for higher efficiency and reduced wattages.

Drain Pan

• Hinged drain pan for faster, easier and safer access and serviceability.
• Tapered mounting for condensate drainage to one end of the unit.
• Double drain pan eliminates sweating.

 Motor

• Motor rail is designed for enhanced strength and durability.
• Motors are life lubricated and thermal-overload protected.
• Dual-speed EC motors are factory-installed.

Controls

• intelliGen™ Refrigeration Controller (iRC) units come with a factory mounted controller, are tested and calibrated with an electronic expansion valve, feature a pressure transducer, temperature sensors, a control board and user interface. Standard features include door sensor, product load input and alarm output.
• Optional factory or field installable intelliGen Webserver Card (iWC) enables local and remote monitoring on any phone, tablet or PC.
• Optional factory or field installable intelliGen Integration Card (iIC) enables connectivity to BACnet and Modbus.

Applications

• Meat storage
• Meat cutting & packing
• Freezer applications
