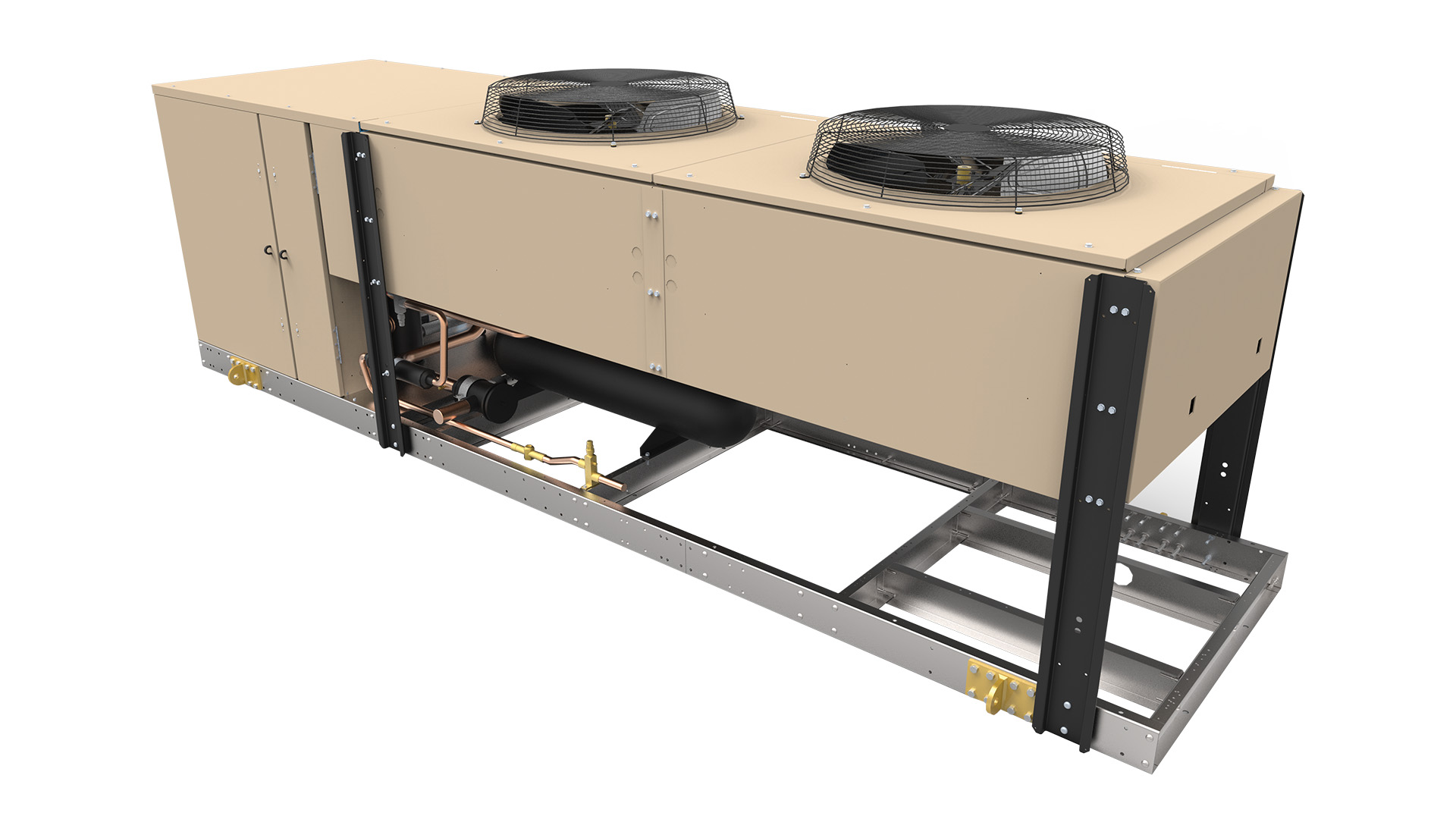

12 - 50 HP Vertical Air Discharge

Nomenclature

Features & Benefits

Quality

• All joints: Sweat type with no mechanical joints to leak.
• Piping reduces stress and vibration and is pre-bent to reduce leak potential.
• Separate sub-cooling circuit in condenser for added capacity and vapor-free liquid.
• Sight glass easily viewable.

Serviceability

• Convenient access panels for easier service of internal components.
• Large electrical panel provides easy access.
• Manual pump down switch on all units.
• Lighted e-box with battery back-up.
• Hinged Venturi fan panels for easy access.

Components

• Receivers sized for sufficient pump down capacity with inlet/outlet service valves.
• Spring-mounted compressors with suction and discharge eliminators.

Cabinet and Construction

• All units feature floating-tube coil to help eliminate tube-sheet leaks.
• Painted steel cabinet for increased strength and corrosion resistance.
• Clevis hook-up brackets to aid unit installation.

Applications

• Large walk-in coolers
• Cold storage warehouses
• Process cooling
