Back Bar

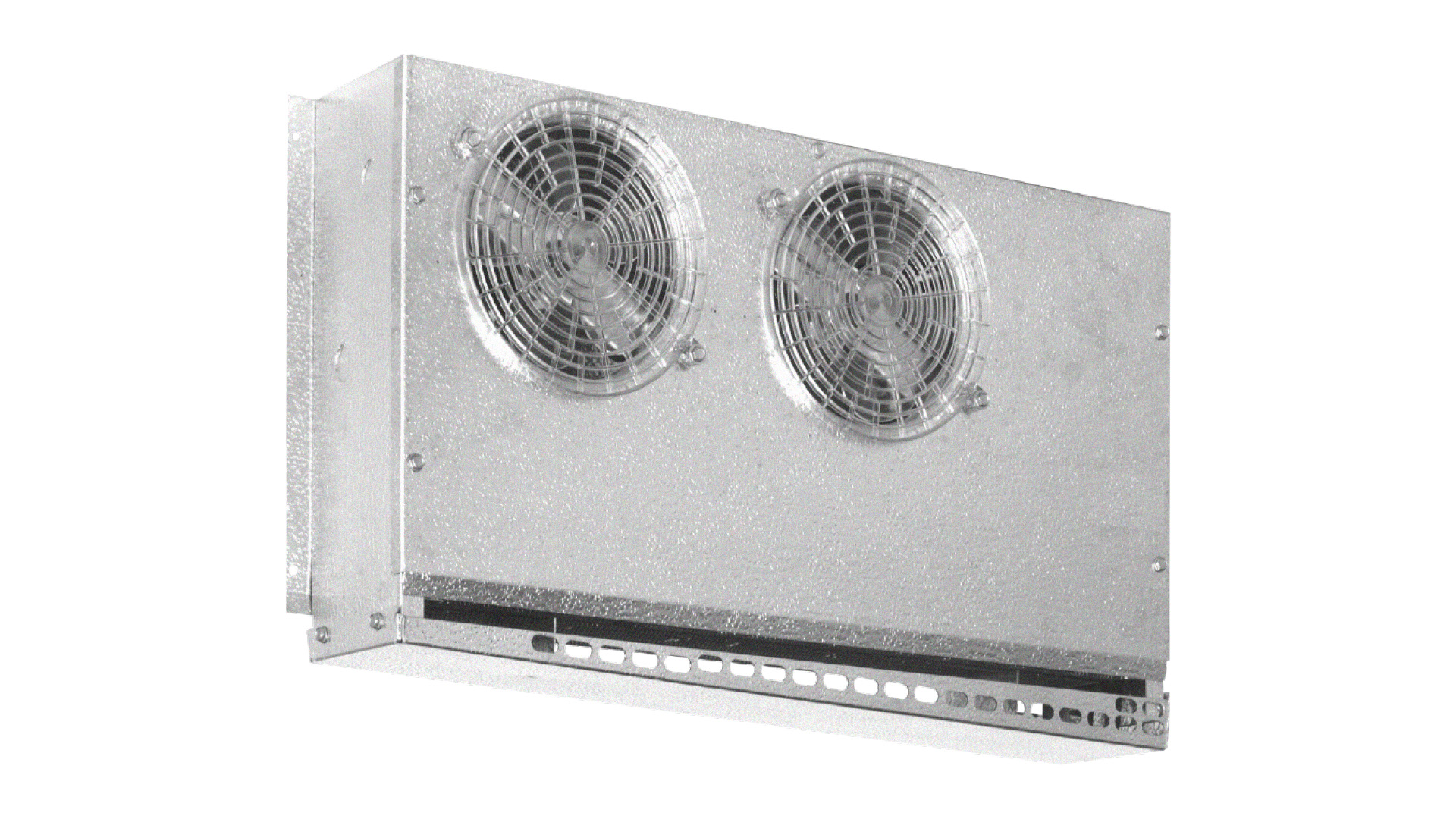

Heatcraft Back Bar Unit Coolers are compact, wall-mounted units whose low height makes them ideal for undercounter reach-in or drawer-type fixtures. The unit draws air from the bottom and discharges air out of the front. An optional air deflector, which can be field formed to direct air where needed, is included and can be mounted over the center of the fan to direct air up and out. The BBL low temperature model comes with an automatic electric defrost option. The BBL has a sheath heater embedded in the bottom fin surface for efficient and fast defrosting. A drain pan heater is included to ensure complete condensate drainage.

  • UL Listed EPH
  • NSF
  • UL Listed US & Canada

Quick Links

Nomenclature

Back Bar Nomenclature

Features & Benefits

  • Quality construction and durability: Coils have copper tubes with aluminum fins, mechanically bonded for efficient heat transfer. Also, the coils are dehydrated and sealed.
  • Easy hookup: Knockouts are conveniently located to run and attach refrigerant lines.
  • Durable, rust-proof construction with hardened stainless-steel screws.
  • Low maintenance: Motors are thermally protected and permanently lubricated.
  • Easy access with sweat-type connections and capability of expansion valve to be mounted inside the cabinet.
  • Master units include the basic unit plus factory-mounted R-404a expansion valve, solenoid and temperature control. Also, right-hand piping extended 8" to 12" outside the housing, sealed and pressurized to 20 to 30 psi. A 1/4" OD liquid feed to slave is included.

Looking for Back Bar?

Browse Catalog

Applications

  • Under-counter reach-in coolers
