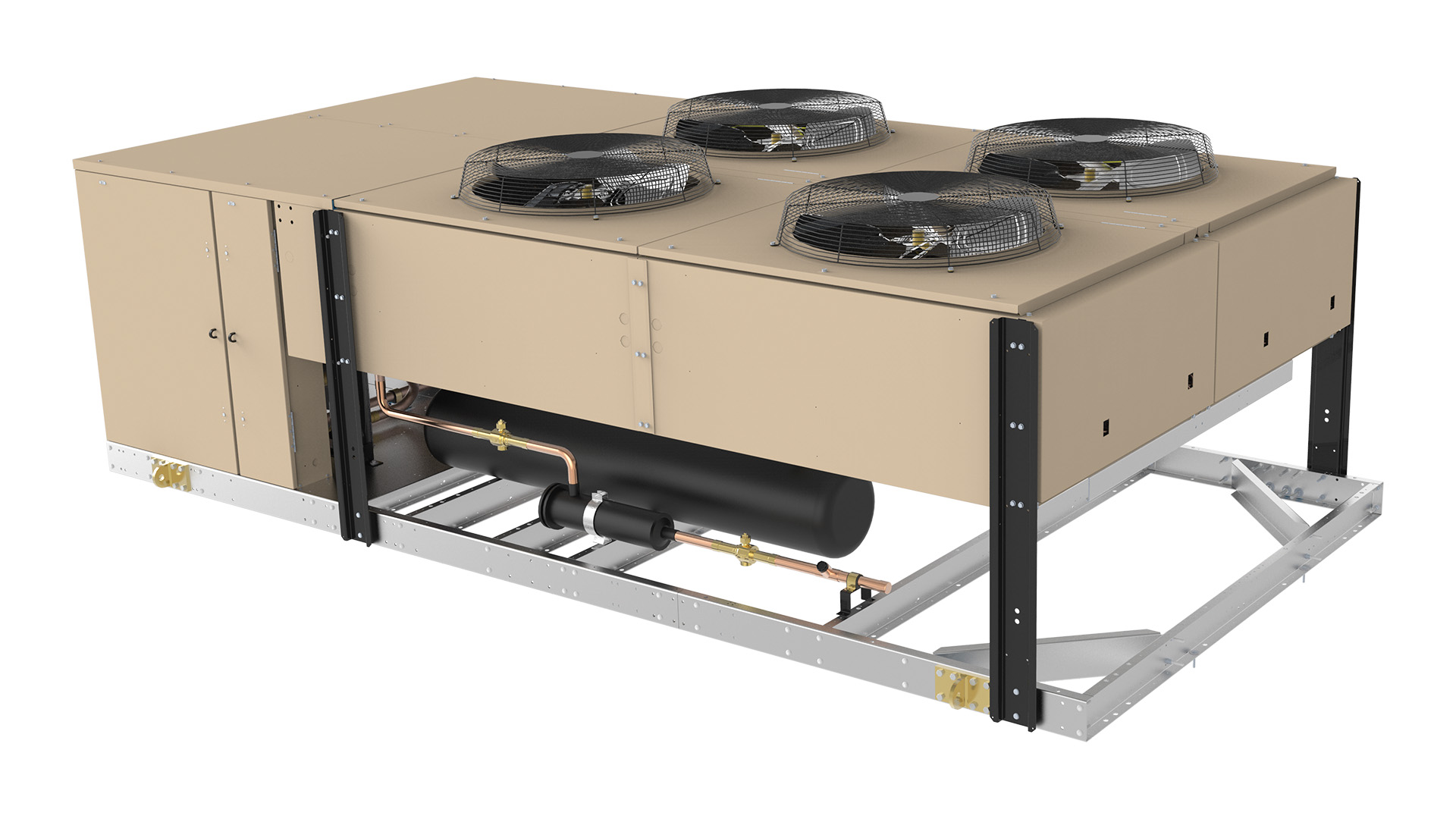

24 - 100 HP Dual Vertical Air Discharge

24 to 100 HP vertical air discharge condensing units with Copeland and Bitzer dual Semi-Hermetic reciprocating compressors are designed for flexibility and serviceability. They can be configured as dual-circuited or parallel piped, and are ideal for medium or low temperature applications with either pre-configured option packages or custom configurations for specific applications. Each unit is approved for multiple refrigerants and can be configured to meet minimum AWEF, Title 24 or other regulations.

  • UL Listed US & Canada

Quick Links

Nomenclature

24 - 100 HP Dual Vertical Air Discharge Nomenclature

Features & Benefits

Quality
  • All joints: Sweat type with no mechanical joints to leak.
  • Piping reduces stress and vibration and is pre-bent to reduce leak potential.
  • Separate sub-cooling circuit in condenser for added capacity and vapor-free liquid.
  • Sight glass easily viewable.
Serviceability
  • Convenient access panels for easy service of internal components.
  • Large electrical panel provides easy access.
  • Manual pump down switch on all units.
  • Lighted e-box with battery back-up.
  • Hinged Venturi fan panels for easy access.
Components
  • Receivers sized for sufficient pump down capacity with inlet/outlet service valves.
  • Spring-mounted compressors with suction and discharge eliminators.
Cabinet and Construction
  • All units feature floating-tube coil to help eliminate tube-sheet leaks.
  • Painted steel cabinet for increased strength and corrosion resistance.
  • Clevis hook-up brackets to aid unit installation.

Looking for 24 - 100 HP Dual Vertical Air Discharge?

Browse Catalog

Applications

  • Large walk-in coolers
  • Cold storage warehouses
  • Process cooling
