chandler Model : HEL0040AS6HCAB0000 current

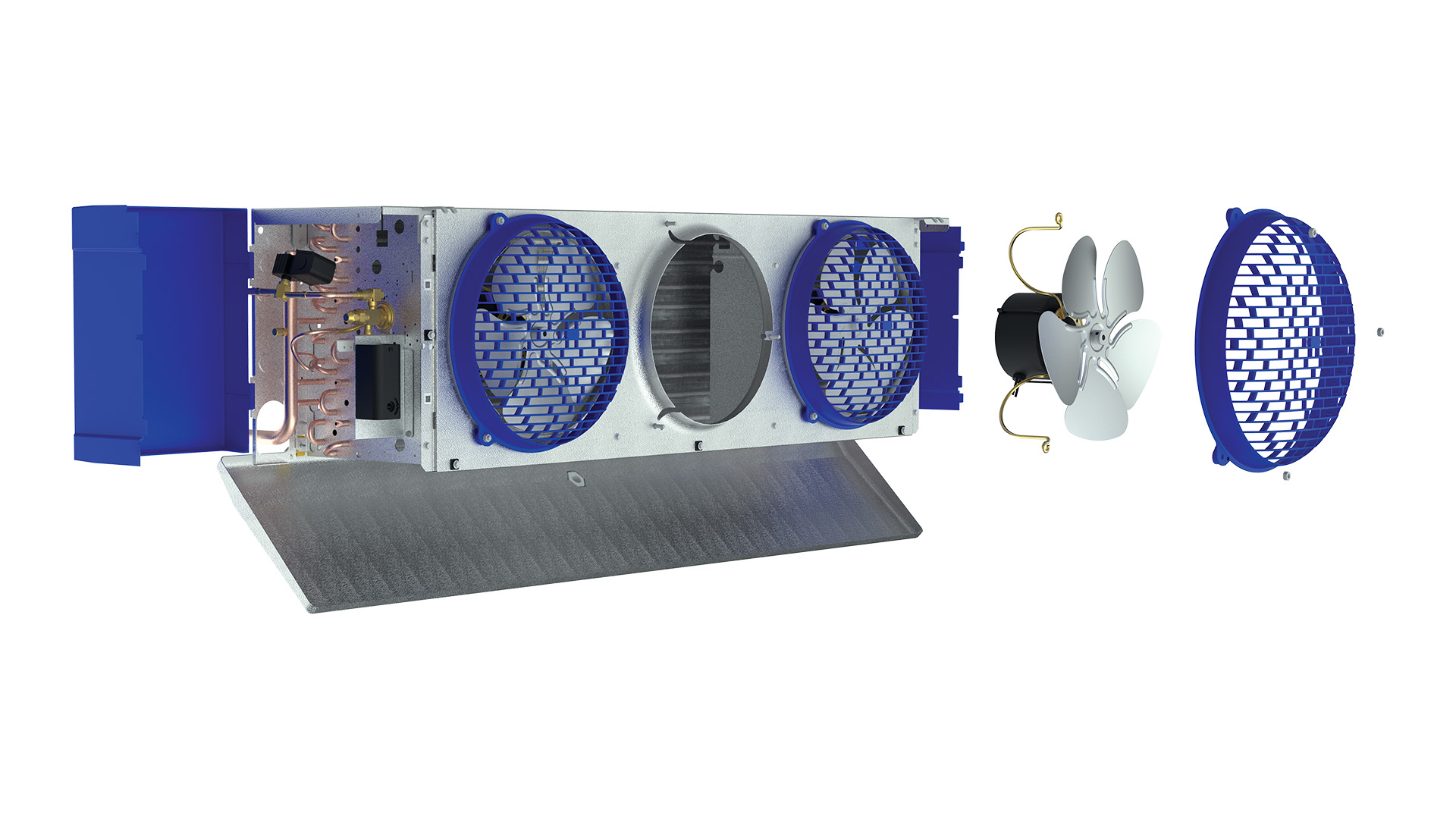

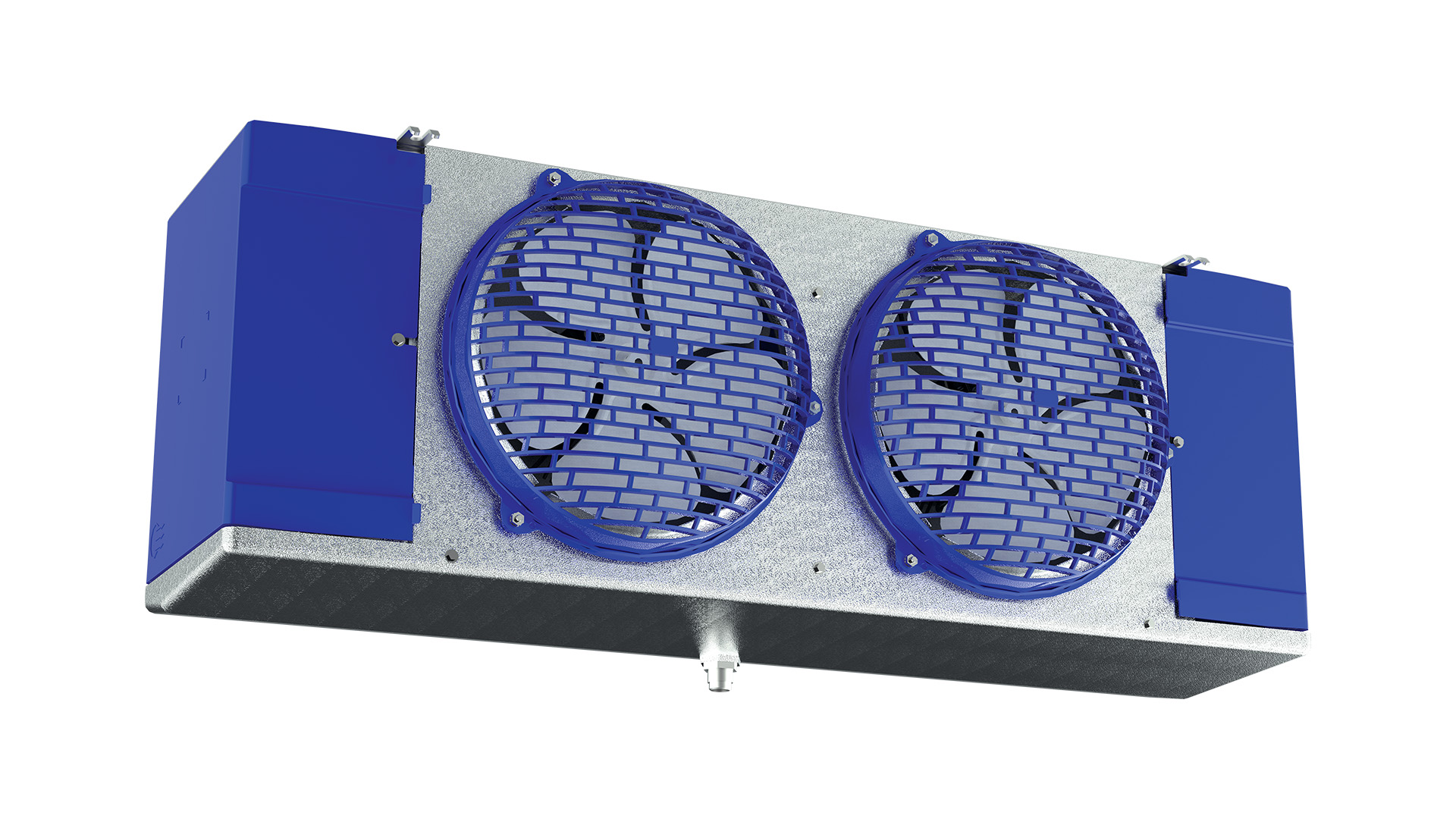

List Price: US$ 3,643Heatcraft Low Profile Unit Coolers have been engineered for efficiency and improved air circulation. Features such as hinged and removable access panels, a hinged drain pan and an easy service motor mount reduce maintenance time and cost.
| R-404A | R-404A | R-407A | R-407A | R-407F | R-407F | R-448A | R-448A | R-449A | R-449A | R-507A | R-507A | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Freezer | Application Capacity | 4,000 | 4,000 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,000 | 4,000 |
| AWEF | - | - | - | - | - | - | - | - | - | - | - | - | |
| Meets Minimum AWEF | |||||||||||||
| General | |
|---|---|
| Product Brand | Chandler |
| Product Type | Walk In Unit Coolers |
| Product Category | Unit Coolers |
| Product Style | Low Profile |
| Product Classification | current |
| Application | Freezer |
| Voltage | 115/1/60 |
| Defrost Type | Hot Gas Defrost |
| FPI | 6 |
| Dual Rated | true |
| Performance | |
|---|---|
| Rating Point F | 10°F TD -20°F SST |
| Refrigerant | R-448A |
| Capacity BTUH | 3,900 |
| CFM | 685 |
| Physical | |
|---|---|
| Height (In.) | 16.4375 |
| Depth In | 13.25 |
| Length (in.) | 29.5 |
| Est Net Weight (lbs) | 38 |
| Electrical Ratings | |
|---|---|
| Motor Type | PSC |
| No Of Fans | 1 |
| Motor HP | 1/20 |
| Unit MCA | 1.3 |
| Unit MOPD | 20 |
| Motor Voltage | 115/1/60 |
| Motor Watts | 82 |
| Motor Amps | 1 |
| Drain Pan Voltage | 115/1/60 |
| Drain Pan Amps | 1.30434782608696 |
| Drain Pan Watts | 150 |
| Connections | |
|---|---|
| Coil Inlet OD | 1/2 |
| Suction Od | 5/8 |
| External Equalizer OD | 1/4 |
| Drain MPT | 3/4 |
| Side Port OD | 1/2 |
| Hot Gas Pan Conns OD | 5/8 |
| Mechanical Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| UC_COIL_MECH_OPTION.E | TXV | 708 | |
| Coil Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| UC_FIN_MAT.BRZ | Bronz-Glow | 2,725 | |
| UC_FIN_MAT.CPR | Copper Coil | 1,005 | |
| UC_FIN_MAT.BRZ | Bronz-Glow or ElectroFin | 2,725 | |
| Drain Pan Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| Insulated Drain Pan | Insulated Drain Pan | 218 | |
| UC_DPAN_TYPE.SS_304_INSUL | Stainless Insulated Drain Pan | 999 | |
| UC_DPAN_TYPE.STUCCO_INSUL | Double Wall Aluminum Stucco Drain Pan | 218 | |
| UC_DPAN_TYPE.SS_304_INSUL | Stainless Insulated Drain Pan Std. Cabinet | 999 | |
| Cabinet Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| UC_CABINET_TYPE.SS | Stainless Steel Cabinet | 2,125 | |
| Expansion Valves | ||
|---|---|---|
| Part Number | Capacity Range | List Price (US$) |
| TXV024 | 24000 BTUH and under | 571 |
| Shipped Loose | |||
|---|---|---|---|
| Part Type | Part Number | Part Description | List Price (US$) |
| 2891040 | Room Thermostat | 490 | |
| 21340101 | Desfrost Timer (60 Hz) | 576 | |
| 28963301 | Electronic Room Thermostat | 798 | |
| 4146T | 5/8" Suction Line Check Valve | 213 | |
| 5890C | 7/8" Suction Line Check Valve | 372 | |
| 5889C | 1 1/8" Suction Line Check Valve | 703 | |
| 2933022 | 1 3/8" Suction Line Check Valve | 1,388 | |
| 5508Q | 6 ft. Drain Line Heater (208-230V 42 Watts) | 247 | |
| 4267W | Adjustable Defrost Control/Fan Delay Switch | 483 | |
| 5594P | 12 ft. Drain Line Heater (208-230V 84 Watts) | 331 | |
| 5595P | 18 ft. Drain Line Heater (208-230V 126 Watts) | 435 | |
| 5596P | 36 ft. Drain Line Heater (208-230V 252 Watts) | 492 | |
| 5597P | 60 ft. Drain Line Heater (208-230V 420 Watts) | 885 | |
| 24200005 | Heat Exchanger used on 0115-0155 Air Defrost Models | 448 | |
| 24200006 | Heat Exchanger used on 0190 Air Defrost Model 0065-0130 (6 FPI) Electric & Hot Gas Models 0090 (4 FPI) Electric Defrost Model | 467 | |
| 24200008 | Heat Exchanger used on 0380 Air Defrost Model 0205-0310 (6 FPI) Electric & Hot Gas Models 0220-0275 (4 FPI) Electric Defrost Models | 852 | |
| 24200004 | Heat Exchanger used on 0045-0105 Air Defrost Models 0040-0045 (6 FPI) Electric & Hot Gas Models 0045-0070 (4 FPI) Electric Defrost Models | 410 | |
| 24200007 | Heat Exchanger used on 0250-0350 Air Defrost Models 0155-0170 (6 FPI) Electric Models 0130-0170 (6 FPI) Hot Gas Models 0135-0180 (4 FPI) Electric Defrost Models | 523 | |
| Check Valves | 4146T | 5/8" Suction Line Check Valve | 213 |
| Check Valves | 5890C | 7/8" Suction Line Check Valve | 372 |
| Check Valves | 5889C | 1 1/8" Suction Line Check Valve | 703 |
| Check Valves | 2933022 | 1 3/8" Suction Line Check Valve | 1,388 |
| Defrost Control | 4267W | Adjustable Defrost Control/Fan Delay Switch | 483 |
| Heat Exchangers | 24200004 | Heat Exchanger used on 035 - 047 (6FPI) and 041 - 068 (4FPI) Electric & Hot Gas Defrost Models | 410 |
| Heat Exchangers | 24200005 | Heat Exchanger used on 065 - 094 (6FPI) and 080 - 105 (4FPI) Electric & Hot Gas Defrost Models | 448 |
| Heat Exchangers | 24200006 | Heat Exchanger used on 120 - 140 (6FPI) and 136 - 139 (4FPI) Electric & Hot Gas Defrost Models | 467 |
| Heat Exchangers | 24200007 | Heat Exchanger used on 160 - 180 (6FPI) and 170 - 174 (4FPI) Electric & Hot Gas Defrost Models | 523 |
| Heat Exchangers | 24200008 | Heat Exchanger used on 200 - 280 (6FPI) and 204 - 235 (4FPI) Electric & Hot Gas Defrost Models | 852 |
| Defrost Controls | 21340101 | Defrost Timer (60 Hz) | 576 |
| Defrost Controls | 4267W | Adjustable Defrost Control / Fan Delay Switch | 483 |
| Room Thermostats | 2891040 | Room Thermostat | 490 |
| Room Thermostats | 28963301 | Electronic Room Thermostat | 798 |
| Drain Line Heaters | 5508Q | 6 ft. Drain Line Heater (208-230V 42 Watts) | 247 |
| Drain Line Heaters | 5508Q | 6 ft. Drain Line heater (208-230V 42 Watts) | 247 |
| Drain Line Heaters | 5594P | 12 ft. Drain Line Heater (208-230V 84 Watts) | 331 |
| Drain Line Heaters | 5594P | 12 ft. Drain Line heater (208-230V 84 Watts) | 331 |
| Drain Line Heaters | 5596P | 36 ft. Drain Line Heater (208-230V 252 Watts | 492 |
| Drain Line Heaters | 5595P | 18 ft. Drain Line Heater (208-230V 126 Watts) | 435 |
| Drain Line Heaters | 5595P | 18 ft. Drain Line heater (208-230V 126 Watts) | 435 |
| Drain Line Heaters | 5596P | 36 ft. Drain Line heater (208-230V 252 Watts) | 492 |
| Drain Line Heaters | 5597P | 60 ft. Drain Line Heater (208-230V 420 Watts) | 885 |
| Drain Line Heaters | 5597P | 60 ft. Drain Line heater (208-230V 420 Watts) | 885 |
| Liquid Line Solenoid Valves | |||||
|---|---|---|---|---|---|
| Part Number | Size | Capacity Range | Temperature Range | Refrigerant | List Price (US$) |
| 29318018 | 3/8 | 10000 BTUH and under | Low Temperature (BTUH) (-20F SST 95F Liquid) | R-404A | 209 |
| 29318018 | 3/8 | 11000 BTUH and under | Medium Temperature (BTUH) (25F SST 95F Liquid) | R-404A | 209 |
| 29318018 | 3/8 | 14000 BTUH and under | Low Temperature (BTUH) (-20F SST 95F Liquid) | R-448A | 209 |
| 29318018 | 3/8 | 15000 BTUH and under | Medium Temperature (BTUH) (25F SST 95F Liquid) | R-448A | 209 |
