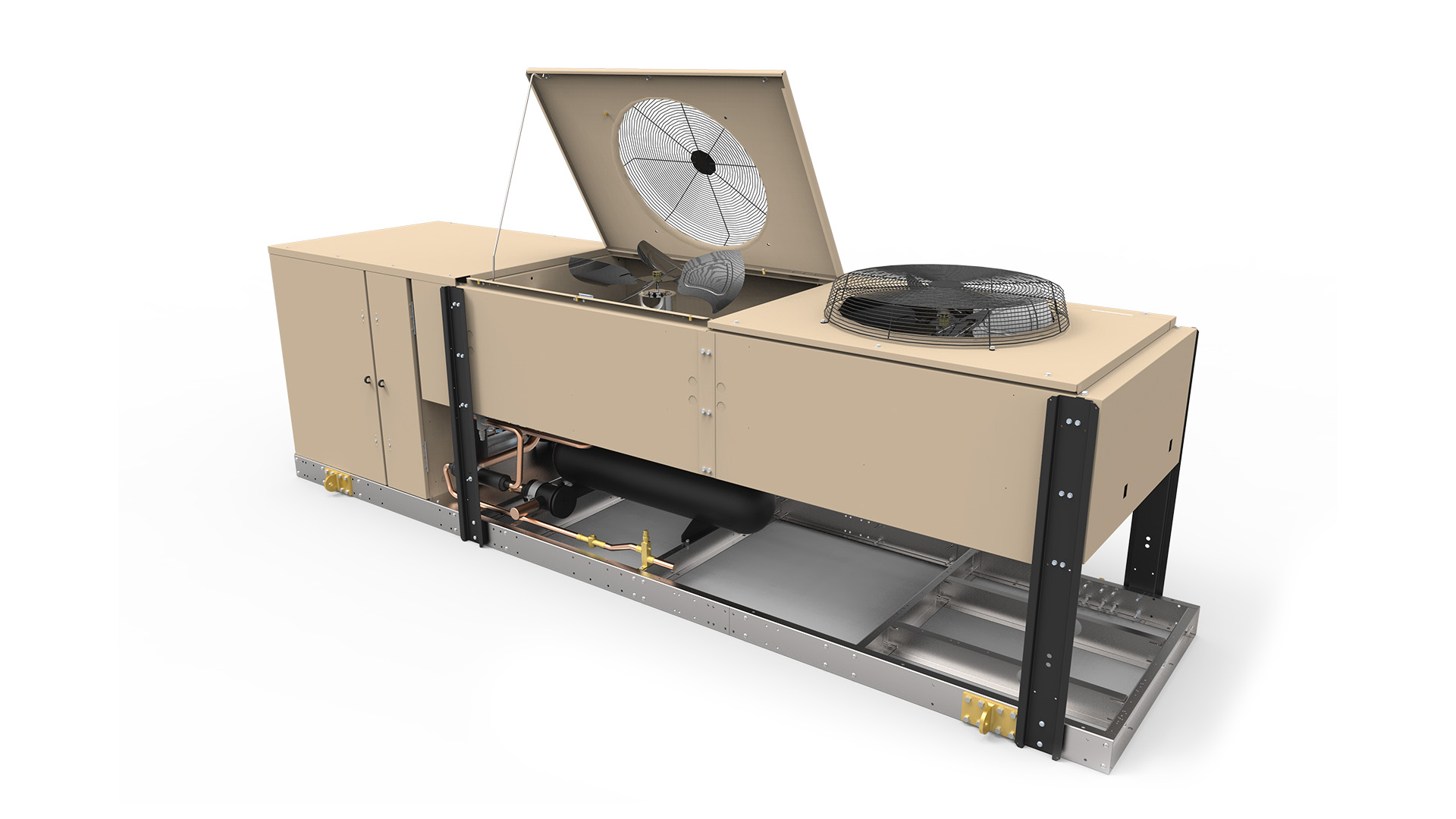

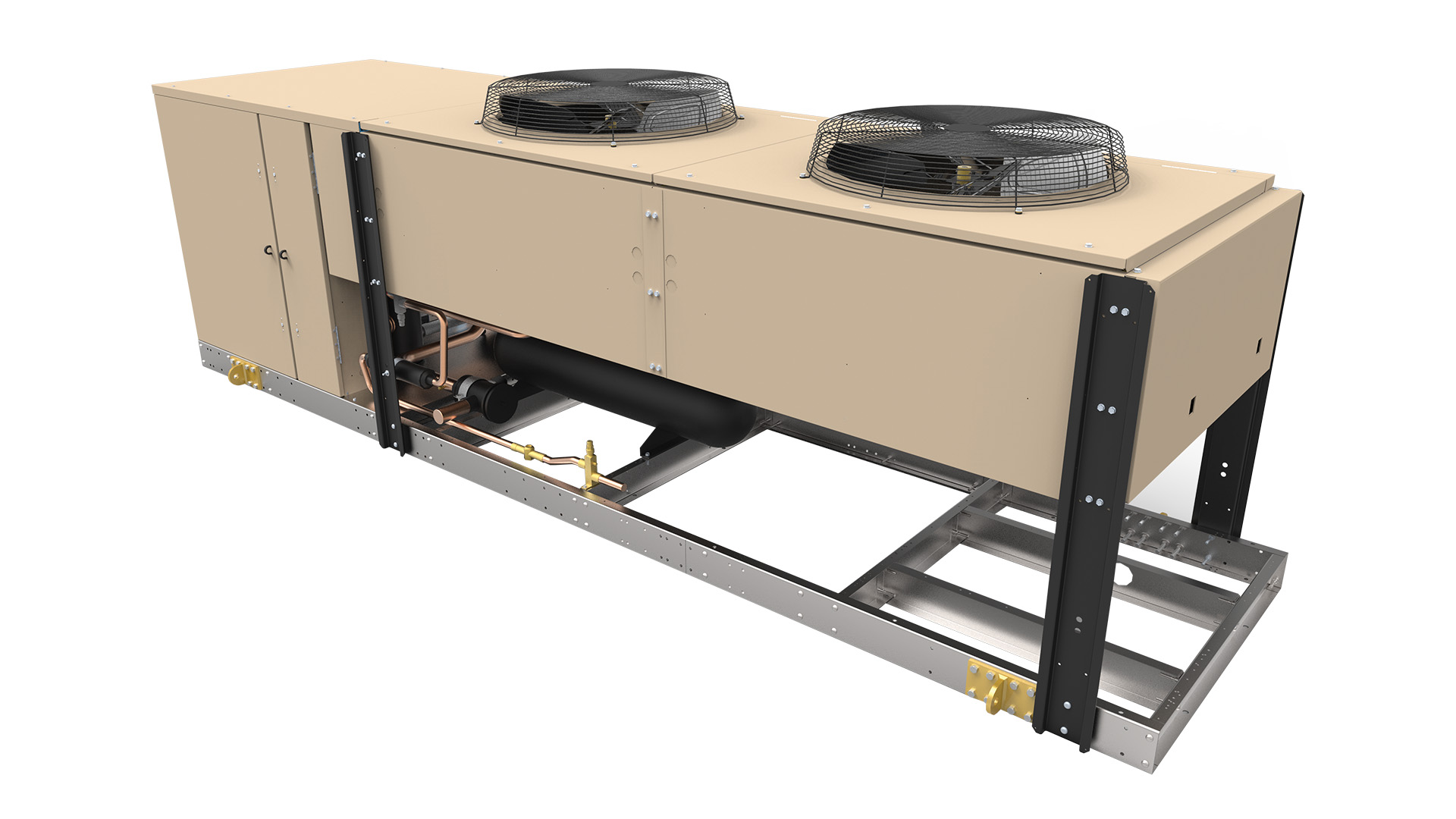

12 to 50 HP vertical air discharge condensing units with Copeland and Bitzer Semi-Hermetic reciprocating compressors provide flexibility and serviceability. Choose from units for medium or low temperature applications, with either pre-configured option packages or custom configurations for specific applications. Each unit is designed and approved for use with multiple refrigerants and can be configured to meet minimum AWEF, Title 24 or other regulations.
R404A | R404A | R407A | R407A | R407C | R407F | R407F | R448A | R448A | R449A | R449A | R507A | R507A | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
freezer | Application Capacity | 75,510 | 75,510 | 66,040 | 66,040 | 54,350 | 66,040 | 66,040 | 64,410 | 64,410 | 64,410 | 64,410 | 75,510 | 75,510 |
AWEF | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 | |
Meets Minimum AWEF |
General | |
---|---|
Product Brand | Bohn |
Product Type | Air-Cooled Condensing Units |
Product Category | Condensing Units and Packaged Systems |
Product Style | 12 - 50 HP Vertical Air Discharge |
Product Classification | current |
Application | Outdoor Vertical |
Operating Range | Low Temperature |
Compressor Type | Discus |
Compressor P N | 4DHNF63KE |
Voltage | 208-230/3/60 |
Refrigerant Type | R404A/R407A/R407C/R448A/R507A/R407F/R449A |
Performance | |
---|---|
Rating Point | 95°F Ambient -20°F SST |
Ambient Temperature F | 95°F |
Suction Temperature F | -20°F |
Capacity BTUH | 75,510 |
Meets Minimum Awef | Yes |
Refrigerant | R404A |
Physical | |
---|---|
Height (In.) | 55.6 |
Depth In | 170.7 |
Width (In.) | 49.6 |
Approx Net Weight (lbs) | 1,870 |
Receiver 90 Pc Full Lbs | 123 |
Electrical Ratings | |
---|---|
Compressor Model Number | 4DHNF63KE |
Power | 208-230/3/60 |
Compressor RLA | 47.18 |
Compressor LRA | 278 |
Fan Motor Qty | 2 |
Fan Motor Fla | 7 |
MCA | 65.97 |
MOPD | 110 |
Remote Loads 4 Contactors Low Amps Evap Fans | 25 |
Remote Loads 4 Contactors Low Amps Defrost Htrs Amps | 64 |
Remote Loads 4 Contactors Low Amps Electric Defrost Mca | 90.97435897 |
Remote Loads 4 Contactors Low Amps Electric Defrost Mopd | 125 |
Remote Loads 4 Contactors High Amps Evap Fans | 25 |
Remote Loads 4 Contactors High Amps Defrost Htrs Amps | 91 |
Remote Loads 4 Contactors High Amps Electric Defrost Mca | 113.75 |
Remote Loads 4 Contactors High Amps Electric Defrost Mopd | 125 |
Remote Loads 3 Contactors Low Amps Evap Fans | 22 |
Remote Loads 3 Contactors Low Amps Defrost Htrs Amps | 70 |
Remote Loads 3 Contactors Low Amps Electric Defrost Mca | 87.97435897 |
Remote Loads 3 Contactors Low Amps Electric Defrost Mopd | 125 |
Remote Loads 3 Contactors High Amps Evap Fans | 25 |
Remote Loads 3 Contactors High Amps Defrost Htrs Amps | 64 |
Remote Loads 3 Contactors High Amps Electric Defrost Mca | 90.97435897 |
Remote Loads 3 Contactors High Amps Electric Defrost Mopd | 125 |
Remote Loads 2 Contactors Low Amps Evap Fans | 20 |
Remote Loads 2 Contactors Low Amps Defrost Htrs Amps | 80 |
Remote Loads 2 Contactors Low Amps Electric Defrost Mca | 100 |
Remote Loads 2 Contactors Low Amps Electric Defrost Mopd | 125 |
Remote Loads 2 Contactors High Amps Evap Fans | 20 |
Remote Loads 2 Contactors High Amps Defrost Htrs Amps | 91 |
Remote Loads 2 Contactors High Amps Electric Defrost Mca | 113.75 |
Remote Loads 2 Contactors High Amps Electric Defrost Mopd | 125 |
Remote Loads 1 Contractors Low Amps Evap Fans | 15 |
Remote Loads 1 Contractors Low Amps Defrost Htrs Amps | 40 |
Remote Loads 1 Contractors Low Amps Electric Defrost Mca | 80.97435897 |
Remote Loads 1 Contractors Low Amps Electric Defrost Mopd | 125 |
Remote Loads 1 Contractors High Amps Evap Fans | 15 |
Remote Loads 1 Contractors High Amps Defrost Htrs Amps | 48 |
Remote Loads 1 Contractors High Amps Electric Defrost Mca | 80.97435897 |
Remote Loads 1 Contractors High Amps Electric Defrost Mopd | 125 |
Connections | |
---|---|
Liquid Od | 1-1/8 |
Suction Od | 2-1/8 |
Package Code | Package Description | List Price (US$) | Notes |
A1400 | Phase loss monitor | 81,745 | |
A0100 | Defrost Timer - Air | 80,807 | |
A0400 | Beacon II/intelliGen™ | 84,722 | |
A1300 | Oil Separator with discharge line check valve | 82,539 | |
A1003 | Replacable core Suction-line filter + Accumulator | 86,963 | |
A1004 | Pr. Controlled fan cycling + Replacable core Suction-line filter + Accumulator | 89,794 | |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 120 |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 130 |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 150 |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 151 |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 200 |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 201 |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 220 |
A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 88,127 | 250 |
Coil Options | |||
---|---|---|---|
Option Code | Option Description | List Price Adder (US$) | Notes |
CS.CPRRTPFCOIL | Round Tube Plate Fin Copper Coil | Call Factory | |
CS.PRORTPFCOIL | Round Tube Plate Fin BohnGuard/ProKote/Polyester Coil | 3,352 |
Defrost Options | |||
---|---|---|---|
Option Code | Option Description | List Price Adder (US$) | Notes |
SDK | InterLink™ Smart Defrost Kit™ | 1,450 | Can not be used alone.™ Must also select a electric defrost timer or electric defrost kit. |
DFT.00X1 | Electric Defrost Kit for system with one evaporator | 3,824 | Includes (1) electric defrost timer (1) heater & (1) fan contactors terminal strip and fusing.™ 48 amp maximum heater load per heater contactor. |
DFT.00X2 | Electric Defrost Kit for system with two evaporators | 6,519 | Includes (1) electric defrost timer (2) heater & (1) fan contactors terminal strip and fusing.™ 48 amp maximum heater load per heater contactor. |
DFT.00X3 | Electric Defrost Kit for system with three evaporators | 8,358 | Includes (1) electric defrost timer (3) heaters & (1) fan contactor terminal strip and fusing.™ 48 amp maximum heater load per heater contactor. |
DFT.00X4 | Electric Defrost Kit for system with four evaporators | 9,986 | Includes (1) electric defrost timer (4) heaters & (1) fan contactor terminal strip and fusing.™ 48 amp maximum heater load per heater contactor. |
EHR.2EVAP_2CONT | Evaporator hold out relays - 2 Evaps & 2 Contactors (2L/2H) | 591 | For use with 2L/2H Electric Defrost Kits™ with two evaporators |
EHR.2EVAP_4CONT | Evaporator hold out relays - 2 Evaps & 4 Contactors (4L/4H) | 591 | For use with 4L/4H Electric Defrost Kits with only two evaporators |
EHR.3EVAP_3CONT | Evaporator hold out relays - 3 Evaps & 3 Contactors (3L/3H) | 887 | For use with 3L/3H Electric Defrost Kits with three evaporators |
EHR.4EVAP_4CONT | Evaporator hold out relays - 4 Evaps & 4 Contactors (4L/4H) | 1,180 | For use with 4L/4H Electric Defrost Kits with four evaporators |
DEF.1CONT_HIGH_60A | Fuses for electric defrost kits (1H) | 767 | For systems with one evaporator |
DEF.2CONT_HIGH_50A | Fuses for electric defrost kits (2H) | 1,527 | For systems with two evaporators |
DEF.3CONT_HIGH-40A | Fuses for electric defrost kits (3H) | 2,302 | For systems with up to three evaporators |
DEF.4CONT_HIGH_30A | Fuses for electric defrost kits (4H) | 3,069 | For systems with up to four evaporators |
DFT.TIMER_1CONT_LOW | Timer & 1 Contactor - Low Amps | 3,825 | Includes (1) electric defrost timer (1) heater & (1) fan contactors terminal strip |
DFT.TIMER_2CONT_LOW | Timer & 2 Contactors - Low Amps | 6,518 | Includes (1) electric defrost timer (2) heater & (1) fan contactors terminal strip |
DFT.TIMER_4CONT_LOW | Timer & 4 Contactors - Low Amps | 9,986 | Includes (1) electric defrost timer (4) heater & (1) fan contactors terminal strip |
DFT.TIMER_1CONT_HIGH | Timer & 1 Contactor - High Amps | 3,825 | Includes (1) electric defrost timer (1) heater & (1) fan contactors terminal strip |
DFT.TIMER_2CONT_HIGH | Timer & 2 Contactors - High Amps | 6,518 | Includes (1) electric defrost timer (2) heater & (1) fan contactors terminal strip |
DFT.TIMER_4CONT_HIGH | Timer & 4 Contactors - High Amps | 9,986 | Includes (1) electric defrost timer (4) heater & (1) fan contactors terminal strip |
DFT.INTELLIGEN_BEACON | Beacon II/intelliGen™ | 5,059 |
Electrical Options | |||
---|---|---|---|
Option Code | Option Description | List Price Adder (US$) | Notes |
CBK.002 | Compressor Circuit Breaker | 4,399 | |
PLM.PLM | Phase Loss Monitor | 1,925 | |
FCY.ADJTEMP | Adjustable Temperature | 2,980 | Fan closest to the header is not cycled. |
FCY.ADJPRESSURE | Adjustable Pressure | 2,980 | Fan closest to the header is not cycled. |
HPS.MANUALRESET | Manual Reset High Pressure Switch | 533 | |
TDR.COMPANTISHORT | Anti-short cycling timer | 1,109 | |
MTR.VSEC_TITLE24-2L | Variable Speed EC w/ Title 24 motor kit | 31,906 | |
NFD.AIRNONFUSEDDISC | Air Non-Fused Disconnect | 2,662 | |
FSD.AIRFUSEDDISCONNECT | Air Fused Disconnect | 2,836 |
Mechanical Options | |||
---|---|---|---|
Option Code | Option Description | List Price Adder (US$) | Notes |
SUC.FILTER | Filter | 2,155 | |
MUF.MUFFLER | Discharge muffler | 781 | |
SUC.FILTER_RC | RC Filter | 2,817 | |
SUC.ACCUMULATOR | Accumulator | 4,601 | |
DIS.HRV_CHECKVLV | 3 way heat reclaim valve and check valve | 2,849 | |
LIQ.FILTER_SG_SV | Filter Drier Sight Glass and Solenoid Valve | 1,598 | Not recommended on applications with line runs more than 25 feet. |
LIQ.FILTER_SG_RCFD | RC Filter Drier and Sight Glass | 793 | |
UNL.ONESTEPCOMPUNL | Compressor unloading with pressure control for 1 cyl. bank | 2,828 | |
DIS.OILSEP_CHECKVLV | Oil Seperator with discharge line check valve | 2,761 | |
REC.STDRECEIVER_LOWAMB | Heated & Insulated Receiver with Low Pressure Bypass | 4,356 |
